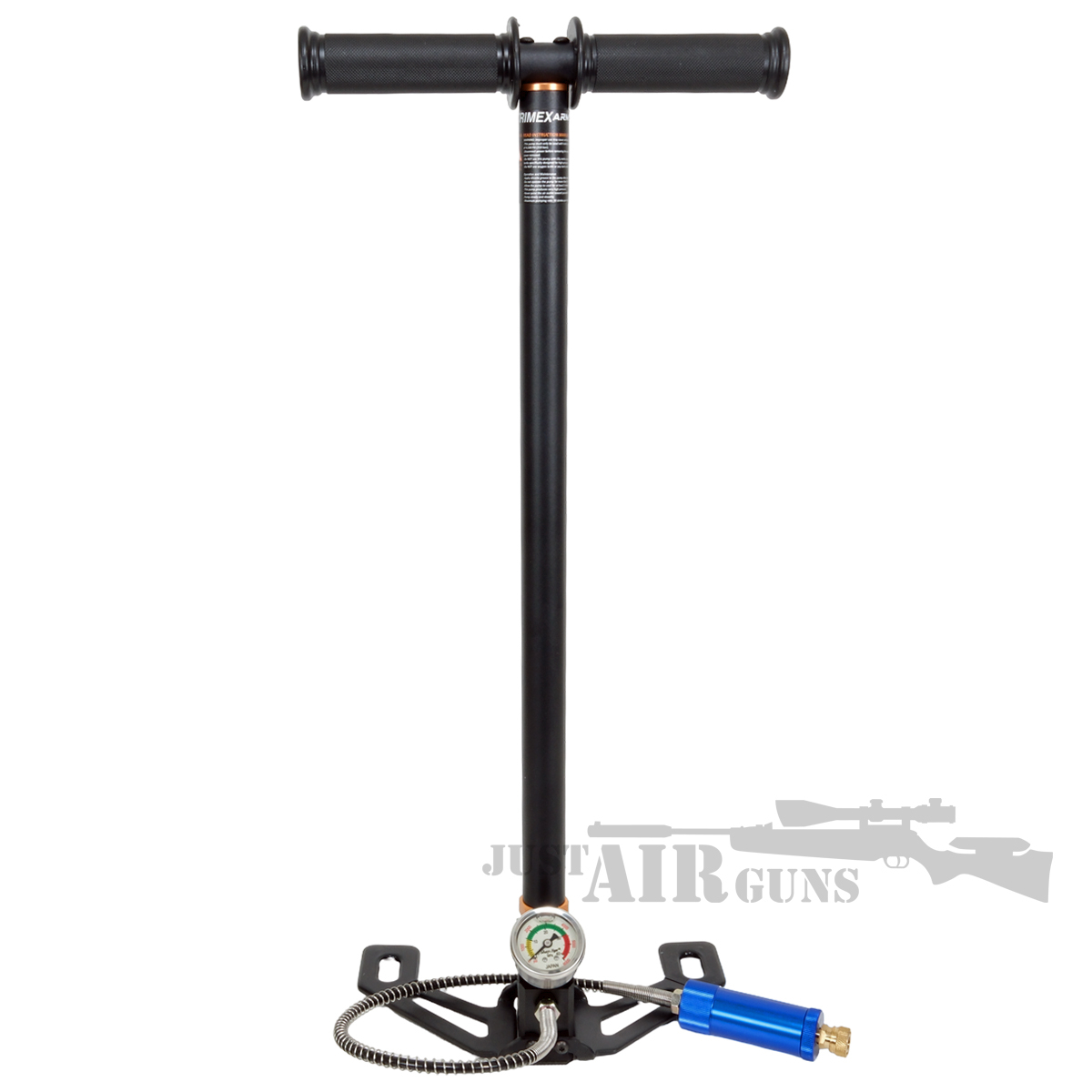

Trimex Arms High-Pressure 3-Stage PCP Air Rifle Hand Pump TX-PMP-1

TRIMEX ARMS HIGH-PRESSURE 3-STAGE HAND PUMP

The Trimex Arms TX-PMP-1 High-Pressure 3-Stage Hand Pump is a reliable and cost-effective solution for charging your PCP air rifle without the need for diving bottles or compressors. Designed for efficiency and durability, this manual pump features a 3-stage compression system, allowing you to reach high pressures with less effort compared to standard single-stage pumps. Built with a strong metal construction and a stable wide foot base, the TX-PMP-1 offers excellent balance and control during use. The ergonomic handle ensures a comfortable grip, while the smooth pumping action helps reduce fatigue when filling your airgun. Ideal for home use or taking out into the field, this pump gives you complete independence when it comes to refilling your PCP rifle. The integrated pressure gauge provides clear and accurate readings, so you can safely monitor your fill levels. Supplied with a standard hose and fittings, the Trimex Arms hand pump is compatible with most PCP air rifles straight out of the box.

FEATURES

• 3-stage high-pressure pump system for efficient filling
• Capable of reaching high PSI levels suitable for PCP air rifles
• Durable all-metal construction for long-lasting performance

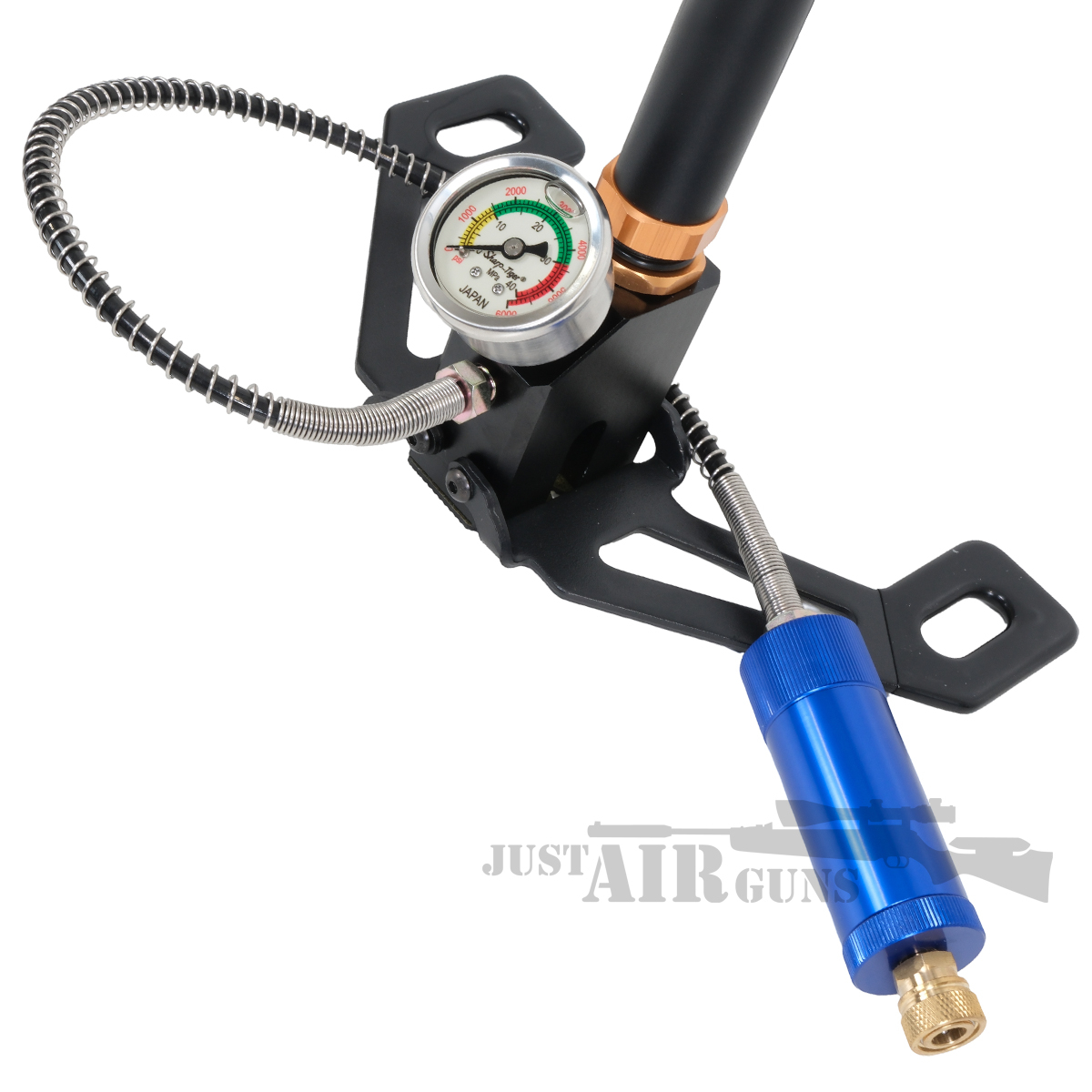

• Built-in pressure gauge for accurate monitoring
• Ergonomic handle for improved comfort during use
• Wide foot base for stability while pumping
• Portable and ideal for home or field use
• Compatible with most PCP air rifles

Perfect for shooters who want a more efficient and durable manual charging solution, the Trimex Arms TX-PMP-1 Water-Cooled Hand Pump offers enhanced performance, reduced heat stress, and dependable operation wherever you are.

ASSEMBLY INSTRUCTIONS

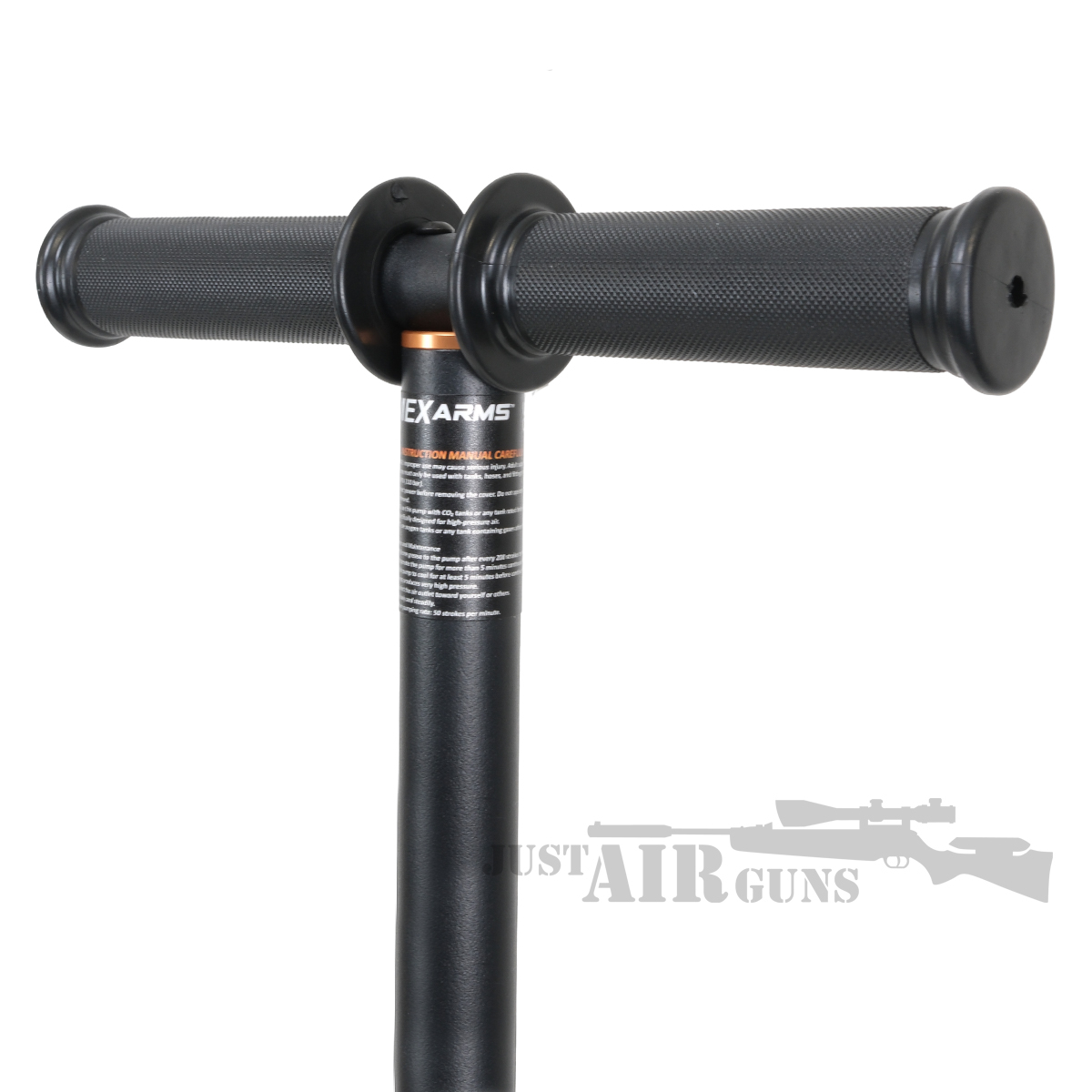

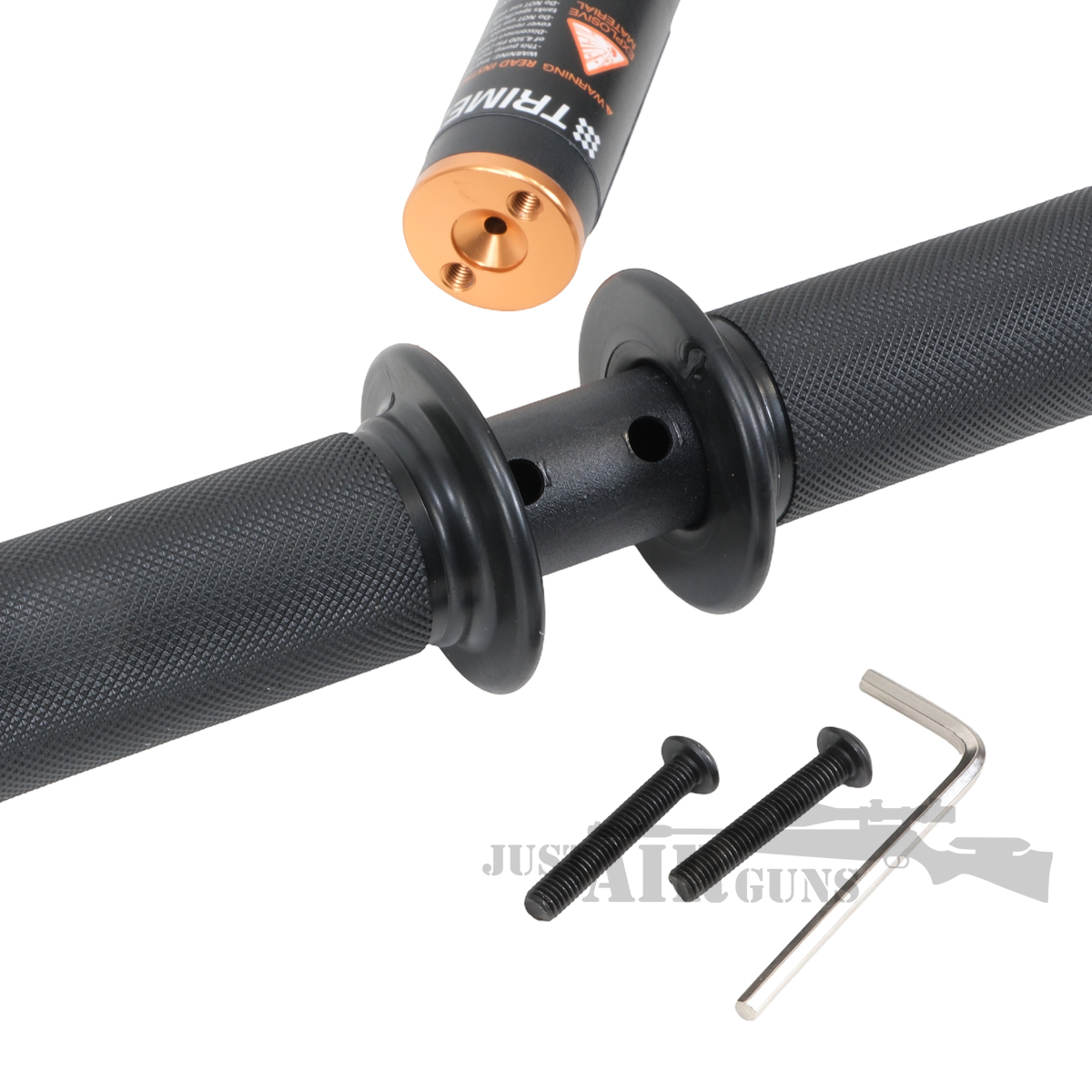

1. Fasten the handle to the pump with the two screws supplied.

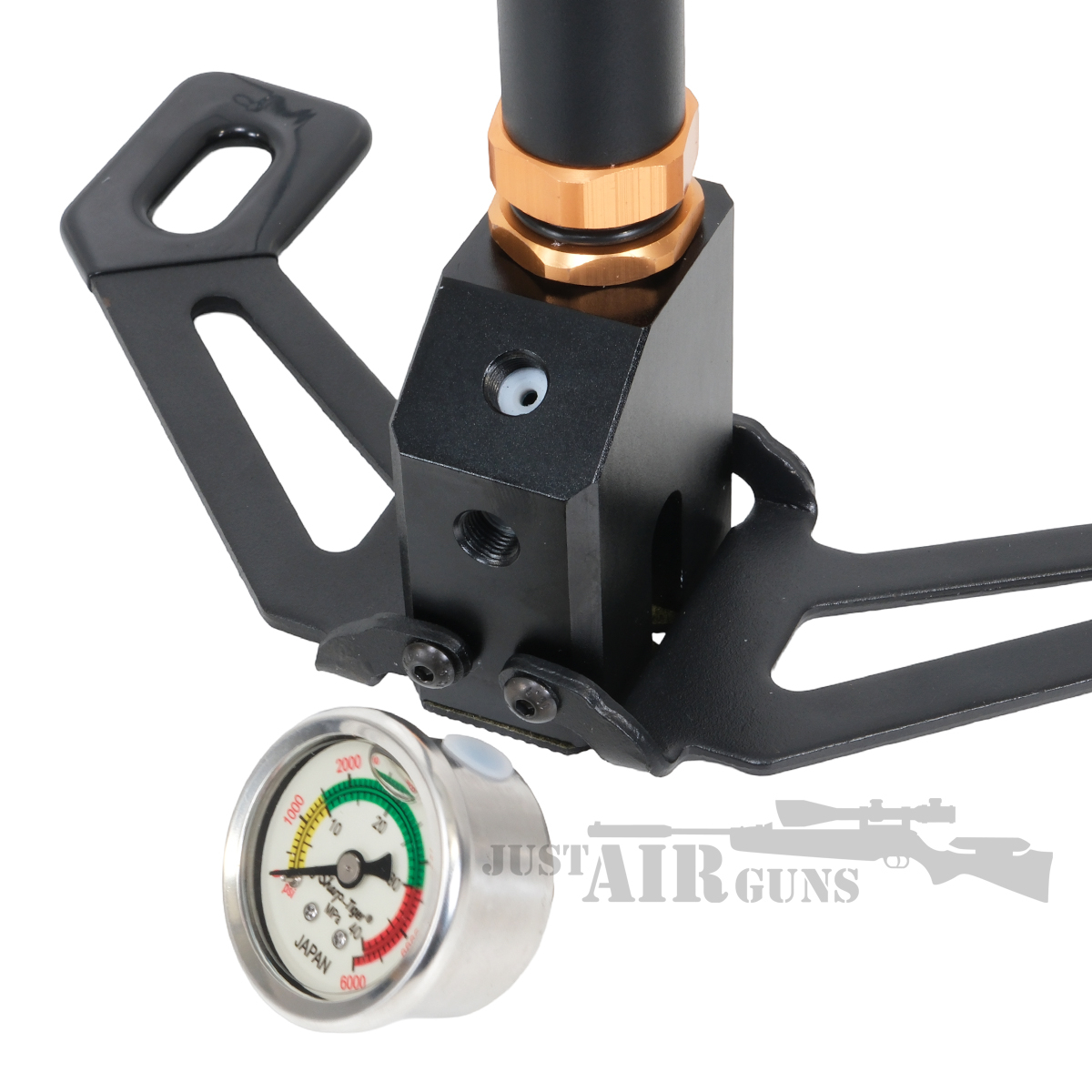

2. Install the pressure gauge manometer carefully into the pump.
3. Fit the dry air filter (do not over-tighten)
4. Insert the high-pressure hose with the provided multi-tool.

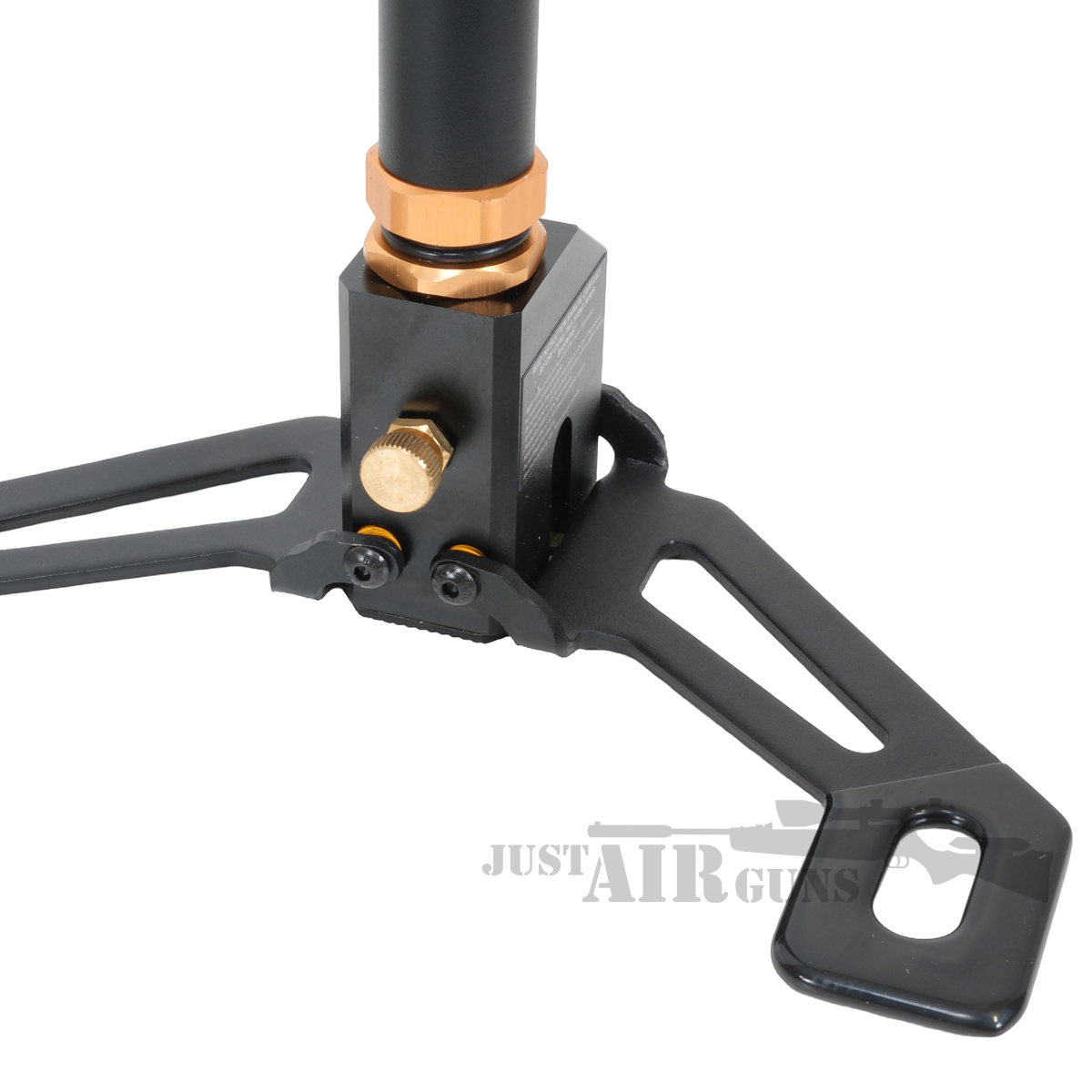

5. Screw down the bleed valve screw on the base.

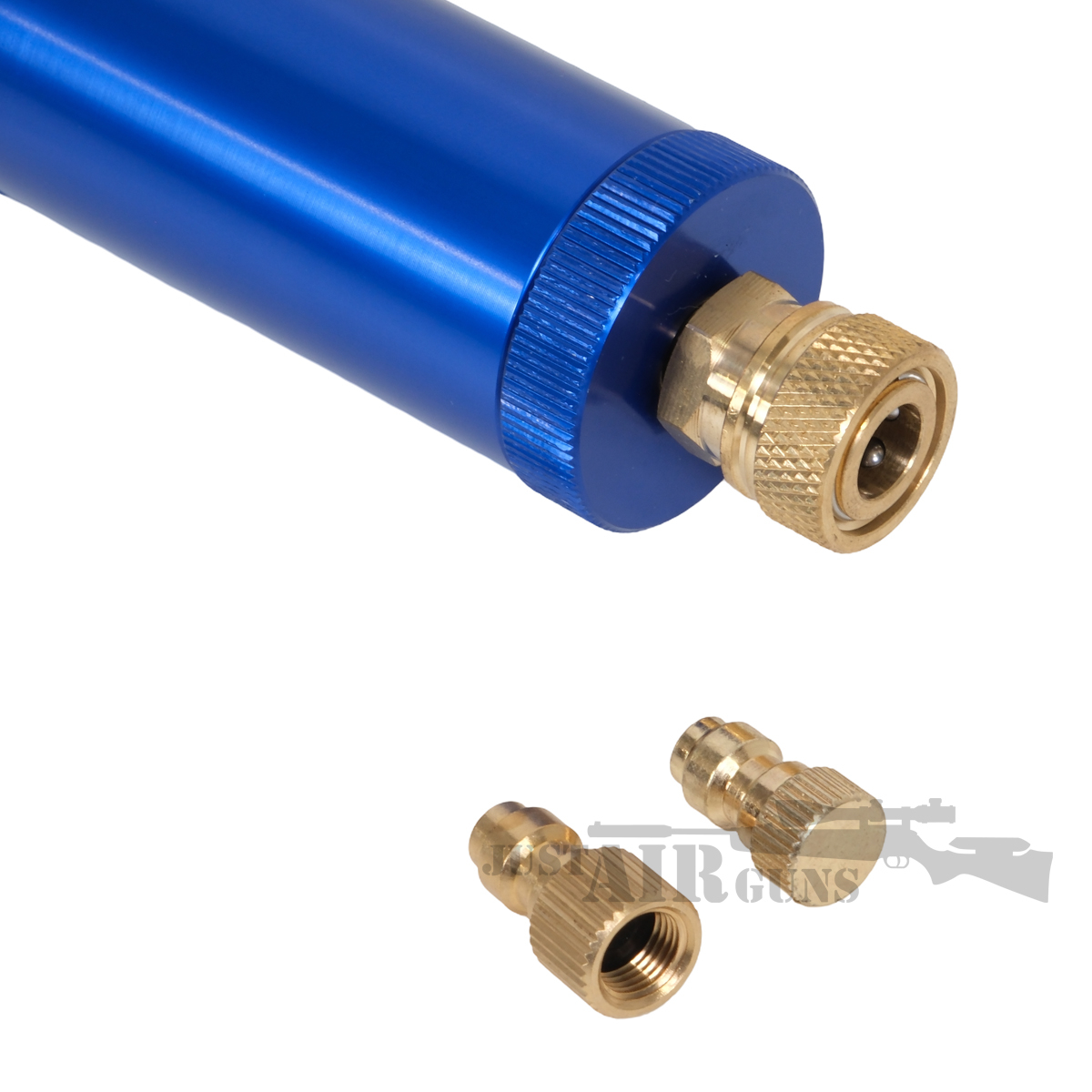

6. Remove the plug from the female connector of the hose/filter.
7. Insert your required fill probe (not supplied with pump).

SPECIFICATIONS

• Model: TX-PMP-1
• Type: 3-Stage PCP Hand Pump
• Max Pressure: Up to approx. 300 BAR / 4500 PSI
• Material: Metal construction
• Hose: High-pressure hose included

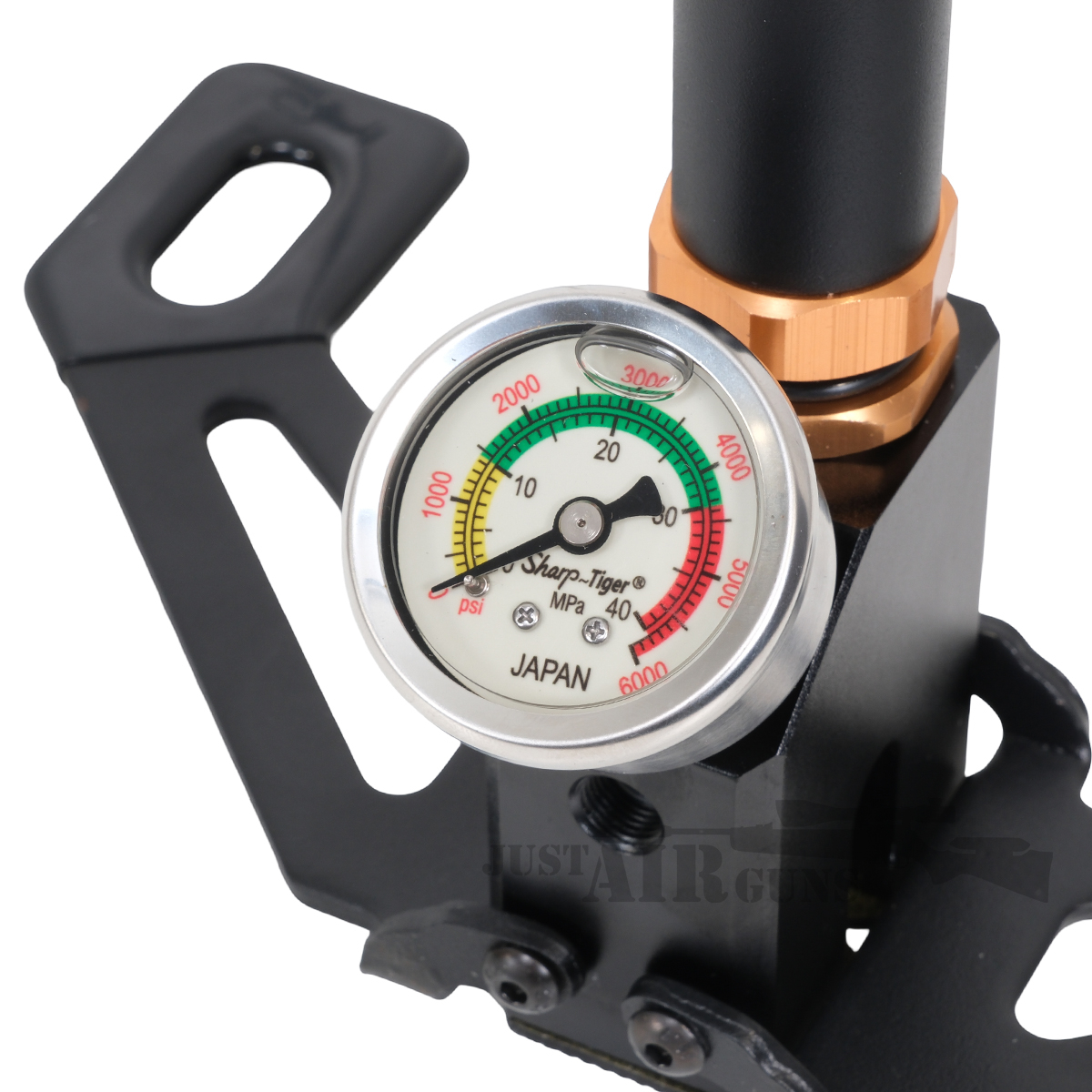

• Gauge: Integrated pressure gauge
• Water-cooled system reduces heat build-up during use
• Wide, stable foot base for improved control
• Portable and ideal for home or field use
• Compatible with most PCP air rifles

HOW TO USE THE PUMP

1. Do not pump too fast – the maximum frequency is 50 times per minute.
2. Very high pressure; do not close the air outlet when it is working.
3. Pressure should not exceed the recommended pressure of 4500 psi.
4. Pump slowly and deliberately. Stop at the top and bottom of each stroke (1-2 seconds) to let the airflow through the tiny holes inside the pump.
5. Do not fail to go all the way to the end of each stroke; make each upstroke count, as most of the work is accomplished in the last 2-3 cm of pump rod travel.

WARNINGS AND MAINTENANCE

1. Do not pump for more than 5 minutes. After each pumping period, leave the pump for 15 minutes to cool.
2. Open the pump bleed screw to relieve the pressure in the hose. Do not keep the pressure in the pump when not in use.
3. Keep the pump dry and clean, and store the pump indoors, away from extreme temperatures.
4. The pump needs re-oiling after 800 pumps. Please see the user manual for more info.

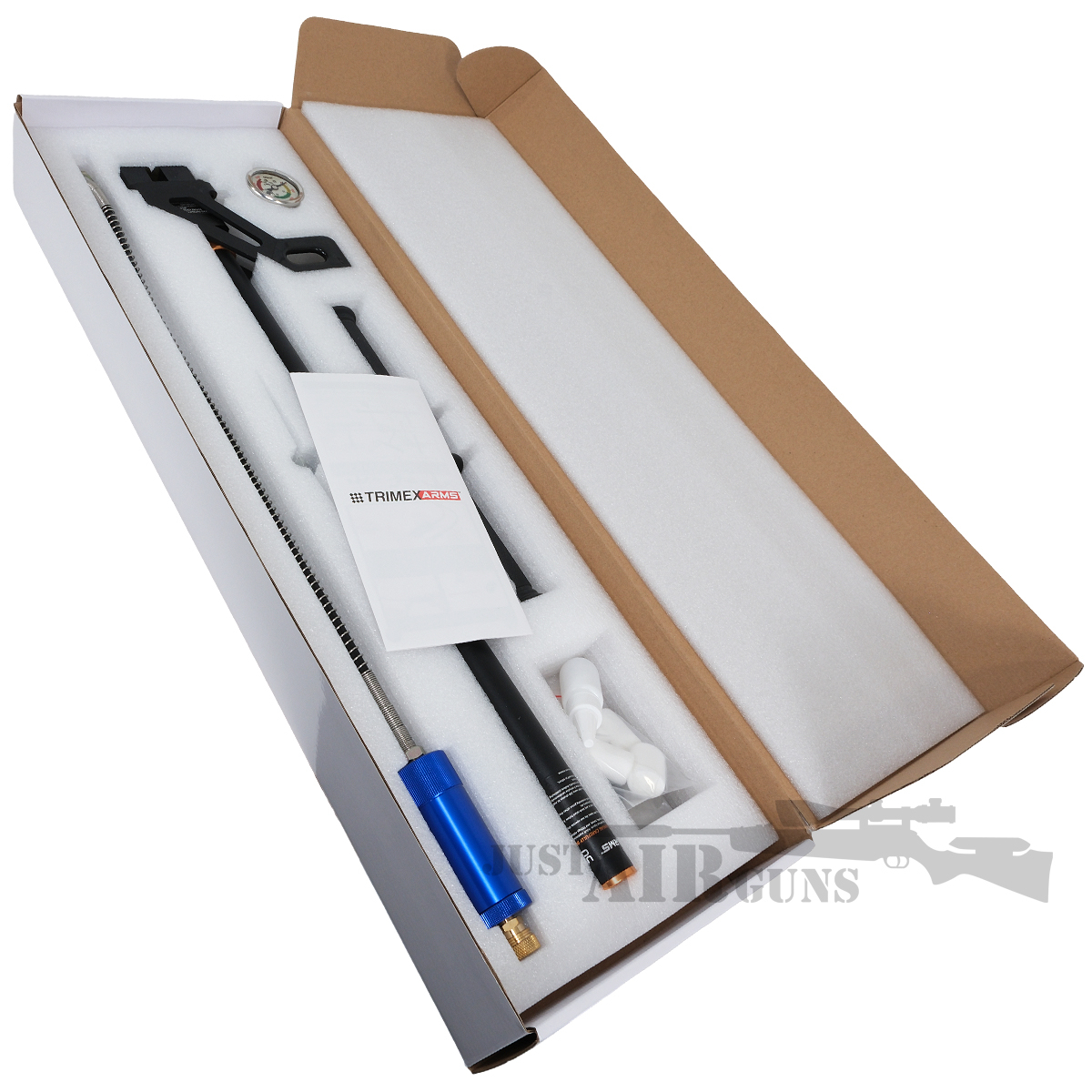

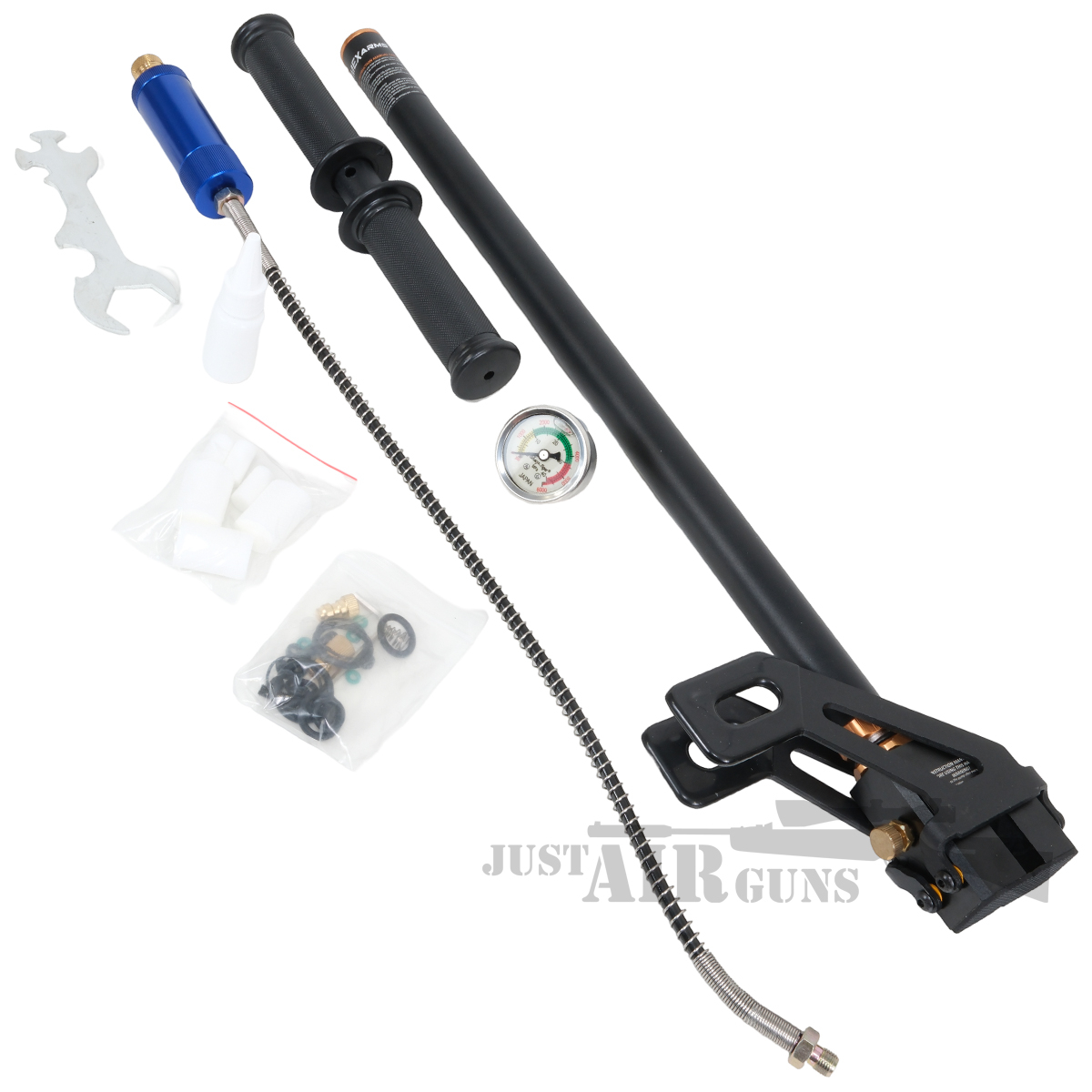

IN THE BOX

• Main Pump with Folding Foot Pedals
• Pump handlebar with Rubber Grips
• Easy Fit Pressure Gauge Unit
• Easy Fit Dry Pack System
• Assembled Hose with Quick-Release Plugs and Filter
• Small Tube of Lubricant Oil
• Spear Small Filters
• Spear Large Filters

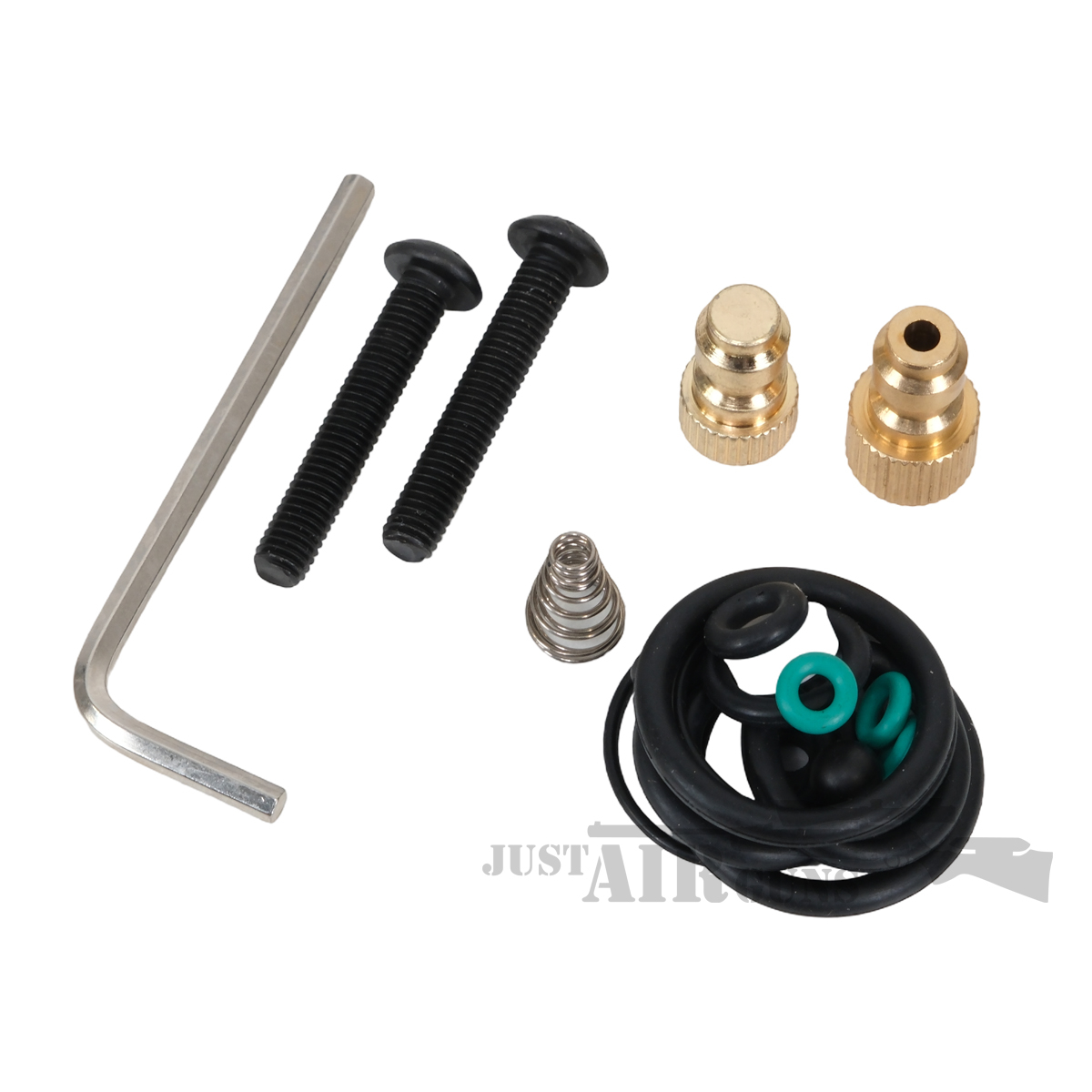

• Replacement O-rings and Springs
• Allen Keys and Screws
• Multi-Tool Wrench Tool
